Product Model：XCDA-P-M621 (Egg), XCDA-P-M622(Meat)

Application field: Poultry breeding research institutes, meat poultry, egg poultry breeding enterprises, breeding poultry factories, poultry farming agricultural cooperatives Poultry breeding laboratory; Small farms; Simple poultry house; Breeding shed

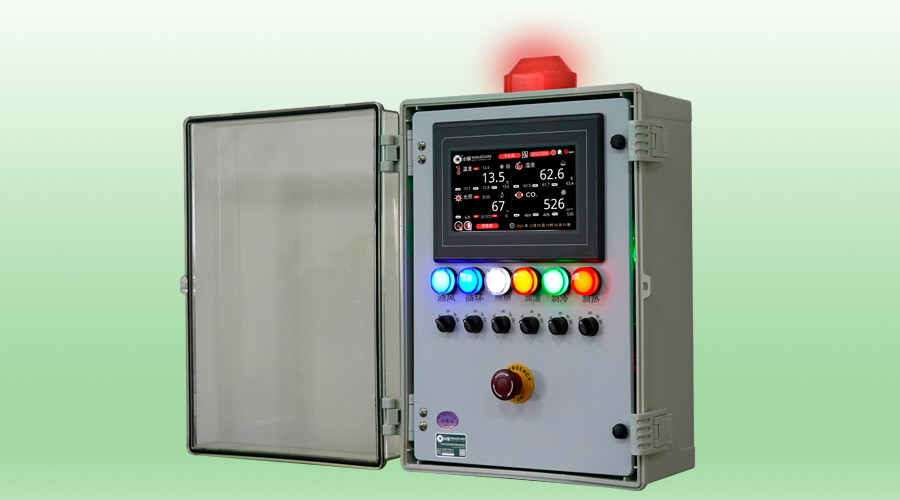

Poultry breeding environment intelligent monitoring expert system (box) (XCDA-P-M621) Air Temperature and Humidity Sensor (XC-SE-TH-2101-R401) Light Sensor (XC-SE-LX-2101R) Hydrogen sulfide concentration Sensor (XC-SE-H2S-2101R) Ammonia concentration sensor (XC-SE-NH3-2101R)

The "Old Monitor" series products (xcMonitor) extend the "Commander" series of products (xcCommander) intelligent sensing system, intelligent control system, expert chip, stage definition and division, early warning and field evaluation and other core functions. The product is highly modular and simplifies the installation and deployment of large smart factory collectors (xcCollecter), controllers (xcControllor) and intelligent control terminals (xcTerminator). This series of products can simultaneously complete eight electrical equipment control, each way can be set to manual control, normally open, normally closed, timing, timing, automatic, energy-saving seven control modes, a total of 56 control combinations.

"Old monitor" product family has a total of five members, respectively, used in food and medicinal fungi cultivation, fruit and vegetable seedlings greenhouse planting, poultry farming, livestock farming, aquaculture five major areas. The "old monitor" is tailored for medium and small agricultural product production bodies, scientific research institutes, and agricultural cooperation organizations, and can fully meet the actual needs of these users with low input, high standards, and fine control.

ARM architecture, artificial intelligence algorithm, integrated intelligent chip, field control expert database, accurate stage division intelligent control technology;

Imported sensor chip, using grass static filtering, mutation suppression, automatic calibration and periodic calibration algorithm, accurate data, no drift;

Eight way equipment control, each way normally open, normally closed, timing, timing, automatic, energy-saving, artificial seven control modes, a total of 56 combinations

Integrated emergency handling mechanism, eight kinds of user rights, chip data encryption, support for mobile phones, computers. Free replacement for hardware failure within one year.

The system can complete real-time data acquisition of the environment, and the parameters that can be collected include: air temperature (including: indoor temperature, outdoor (top layer, material temperature, reference) temperature, 24-hour temperature difference), air temperature monitoring range: -30 ~ 60℃, accuracy: 0.5 ℃; The air humidity class displays data (including relative temperature, absolute humidity, 24-hour humidity difference, and the maximum, minimum, and average temperature and humidity within 24 hours). Air humidity monitoring range: 0 ~ 100%, accuracy: ±3%; Hydrogen sulfide concentration, ammonia concentration, 24-hour maximum concentration of ammonia, 24-hour minimum concentration of ammonia, 24-hour average concentration of ammonia.

For more details, please contact us! Contact number: 18378395151
