Product Model：XC-CO-CM-2101-Z301

Used in the field of industrial production electricity, complete the safety of production electricity safety environment data collection, early warning and equipment control of a product.

safety production of electricity safety intelligent monitoring expert system

Technical description:

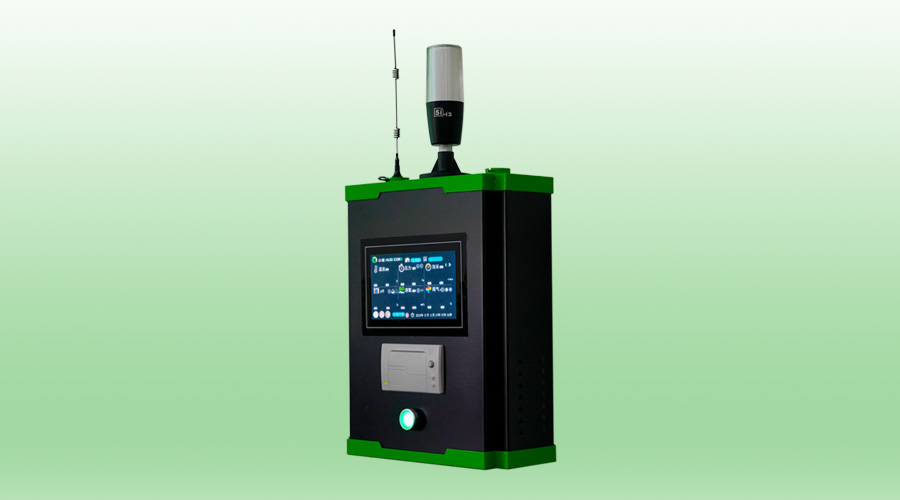

The intelligent monitoring expert system (Specification: XC-CO-CM-2101-Z301) is a product of the "Commander" series of products of Xiaocaohu Smart agriculture applied to the field of industrial production electricity, which completes the data collection, early warning and equipment control of the safety environment of production electricity.

The main functions of the product include: 1. Through the voltage sampling of the power grid line, the current sampling of the current transformer, the current detection of the leakage transformer, the trip detection, and the temperature sensor cable temperature monitoring, the power anomaly warning and automatic power failure emergency protection can be achieved.

2. The main monitoring electrical parameters are: voltage overvoltage, voltage undervoltage, leakage current, load current, cable temperature, total active power, active power, data transmission and remote communication module is integrated by Xiaocao Company system, and provides big data storage, real-time monitoring and data visualization analysis.

3, the system supports industrial bus (CAN, RS232\RS485\RS422), wired local area network (LAN), ZIGBEE, 3G/4G/5G, WIFI and other wireless mobile network communication connection mode (determined by the product model) and host computer communication, the system has integrated control and remote control interface, It can be controlled remotely by computer and mobile phone terminal (need to be used with other grass hardware and software), with strong anti-interference ability, and the system can operate normally when the power grid voltage changes caused by the start and stop of high-power electrical appliances.

4. The whole system is independently developed by Xiaocao Company and has obtained a number of national invention patents, utility model patents and software Copyrights. The intellectual property rights are clear, the products are standard with 7-inch industrial LCD touch screen and thermal printer, and provide one year free replacement and lifelong technical support services.
